Getting Started on McCartney — HPC User Guide

Version 0.2 — March 2026. This guide replaces v0.1.
Questions, password resets, software requests, or bugs? Contact the SysAdmins: Gabriel Ballesteros · gaballesteros@gmail.com  |  Valentín Berríos · v.berriosfarias@gmail.com

1. Overview

McCartney is a Linux-based HPC cluster running Slurm as its workload manager. It has no graphical interface — all interaction happens through a Bash command-line terminal. If you are new to the Linux command line, work through one of these tutorials before proceeding:

• Terminal Basics (interactive, browser-based)
• Learning the Shell — linuxcommand.org
• The Missing Semester of Your CS Education — MIT

2. Hardware

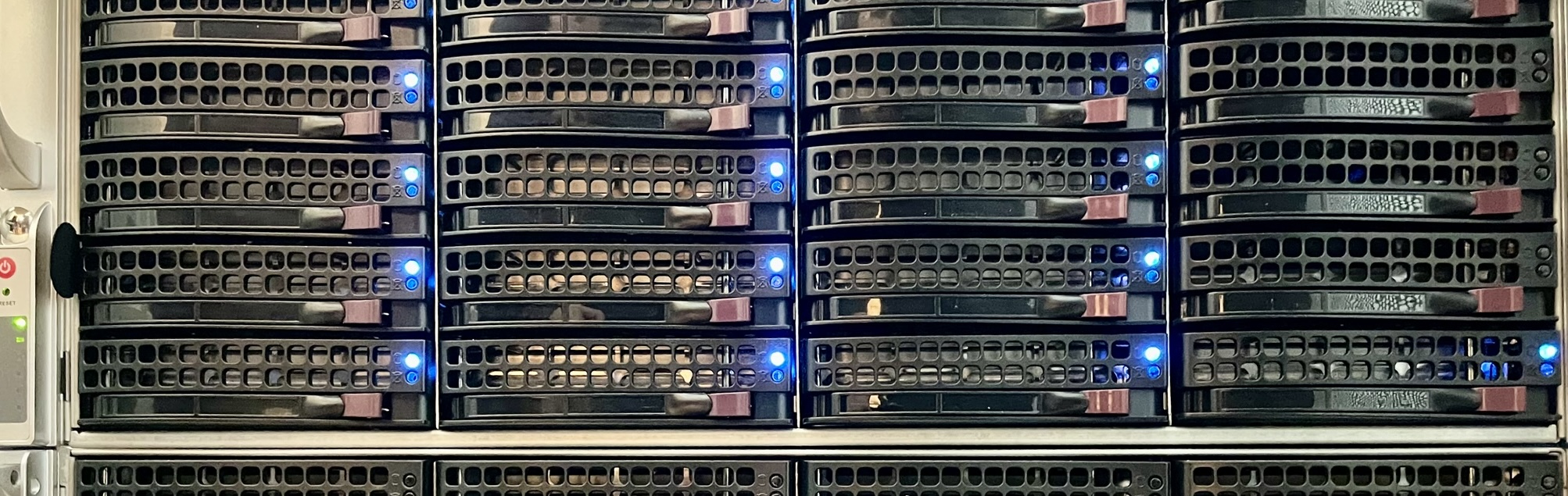

McCartney consists of four compute nodes across two partitions, plus a dedicated storage node that also hosts the front-end (the machine you log into).

The front-end has only 4 GB RAM and 2 CPU cores — intentionally limited.
Do not run analyses on it. Use it only to write scripts, manage files, and submit jobs to the queue.

Partition: basic

Partition: gpu

Which node should I use?

Choose based on three factors:

1. How many CPU cores does my tool use?
2. How much RAM does my job need? (jobs requiring >256 GB must go to n001)
3. Does my tool use GPU acceleration? → --partition=gpu

3. Your Account

Accounts follow the format first initial + last name (all lowercase). Passwords are set to firstname + account creation date by default.

Example: A user named Paul McCartney, whose account was created on the 18th of June, receives:

username: pmccartney
password: paul18

Custom passwords are available on request — contact a SysAdmin.
Note: when you type your password in the terminal, no characters are displayed. This is normal.

4. Connecting via SSH

All connections use SSH (Secure Shell). You need:

The UTALCA-Visitas network does not work for SSH connections.

On macOS / Linux

Open a terminal and run:

# From inside the university network
ssh pmccartney@172.22.0.21 -p 20223

# From outside
ssh pmccartney@190.110.100.21 -p 20223

On Windows

SSH is built into Windows 10/11. Press Start, type cmd, open Command Prompt, and run the same command above.
Alternatively, install Windows Terminal for a better experience.

3-strike rule: entering the wrong password three times in a row will ban your IP address. If this happens, switch networks and contact a SysAdmin to unblock you.

5. Transferring Files

Windows — WinSCP (recommended)

Download WinSCP and fill in the connection details:

The left panel shows your local machine; the right panel shows the cluster. Drag and drop to transfer.

macOS / Linux — command line

# Copy a local file TO the cluster
scp -P 20223 myfile.fastq.gz pmccartney@172.22.0.21:/home/pmccartney/data/

# Copy an entire folder TO the cluster
scp -P 20223 -r my_reads/ pmccartney@172.22.0.21:/home/pmccartney/data/

# Copy a result FROM the cluster to your local machine
scp -P 20223 pmccartney@172.22.0.21:/home/pmccartney/results/output.tsv ./

You can also mount the cluster as a network drive in your file manager:

# Linux file manager → "Connect to server"
ssh://172.22.0.21

Faster large transfers — rsync

# Sync a folder, showing progress, over the custom port
rsync -avz --progress -e "ssh -p 20223" my_reads/ pmccartney@172.22.0.21:/home/pmccartney/data/

6. Software Modules

McCartney uses the Environment Modules system. Software is not available by default — you must load it before use.

# See all installed software
module avail

# Load a specific tool
module load NCBI-Blast
module load FastQC
module load Bowtie2

# See what you have loaded right now
module list

# Unload a module
module unload FastQC

# Unload everything
module purge

Do not install software in your home directory. If a tool you need is missing, contact Gabriel or Valentín — they will install it system-wide, along with any required databases.

Reference scripts with common module combinations are available on the cluster at:

/home/scripts-referencia/

7. The SLURM Job Scheduler

McCartney runs Slurm (Simple Linux Utility for Resource Management) to allocate compute resources fairly across all users. You do not run jobs directly — you submit them to a queue and Slurm starts them when the requested resources become free.

Over-requesting resources harms everyone. A job asking for 20 CPUs when your code uses only 1 blocks those CPUs for other users and forces your own job to wait longer for a slot. Estimate carefully.

Monitoring commands

# View all jobs currently running or queued
squeue

# View only your jobs
squeue -u pmccartney

# Check node availability (idle = free, alloc = fully busy, mix = partially free)
sinfo

# Cancel a job (find JOBID with squeue first)
scancel <JOBID>

# Cancel all your jobs at once
scancel -u pmccartney

Full documentation: slurm.schedmd.com/squeue.html · sinfo · scancel

8. Writing Job Scripts

Jobs are submitted with sbatch using a shell script (.sh) that begins with #SBATCH directives declaring the resources you need.

Common #SBATCH directives

Full reference: slurm.schedmd.com/sbatch.html

9. Script Templates

Template A — Single core, low memory

Suitable for: simple scripts, R, Python, serial tools.

#!/bin/bash
#SBATCH --job-name=my_job
#SBATCH --partition=basic
#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=1
#SBATCH --mem=4G
#SBATCH --output=output_%j.out
#SBATCH --error=output_%j.err

# Load required module(s)
module load <module_name>

# Your command
<command>

Submit with:

sbatch my_script.sh

Template B — Multi-core, high memory

Suitable for: assembly, read mapping (BWA, Bowtie2), database searches (DIAMOND, BLAST).

#!/bin/bash
#SBATCH --job-name=mapping_run
#SBATCH --partition=basic
#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=16
#SBATCH --mem=64G
#SBATCH --time=24:00:00
#SBATCH --output=mapping_%j.log
#SBATCH --error=mapping_%j.err

module load Bowtie2

# Pass the thread count automatically from SLURM
THREADS=$SLURM_CPUS_PER_TASK

bowtie2 -p $THREADS \
    -x /path/to/index \
    -1 reads_R1.fastq.gz \
    -2 reads_R2.fastq.gz \
    -S output.sam

Template C — Job array (process multiple samples in parallel)

Slurm launches one independent copy of the script per array index. Use this whenever you have N samples that can be processed identically and independently — it is much more efficient than submitting N separate scripts.

#!/bin/bash
#SBATCH --job-name=fastqc_array
#SBATCH --partition=basic
#SBATCH --array=1-6              # launches 6 jobs
#SBATCH --cpus-per-task=16
#SBATCH --mem=64G
#SBATCH --time=04:00:00
#SBATCH --output=fastqc_%A_%a.out   # %A = array job ID, %a = task index
#SBATCH --error=fastqc_%A_%a.err

# 1. Define sample list
SAMPLES=("Sample1" "Sample2" "Sample3" "Sample4" "Sample5" "Sample6")

# 2. Select this task's sample (SLURM_ARRAY_TASK_ID starts at 1, bash arrays at 0)
INDEX=$(($SLURM_ARRAY_TASK_ID - 1))
SAMPLE=${SAMPLES[$INDEX]}

# 3. Run
module load FastQC

mkdir -p fastqc_results

echo "Processing $SAMPLE at $(date)"
fastqc -t 16 -o fastqc_results/ reads/${SAMPLE}_R1.fastq.gz reads/${SAMPLE}_R2.fastq.gz
echo "Done at $(date)"

Learn more: Slurm job arrays documentation

Template D — Array with local scratch (fast I/O)

Copying data to the node’s local /scratch disk before processing avoids network bottlenecks on I/O-heavy jobs.

#!/bin/bash
#SBATCH --job-name=fastqc_scratch
#SBATCH --partition=basic
#SBATCH --array=1-6
#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=16
#SBATCH --mem=64G
#SBATCH --time=04:00:00
#SBATCH --output=fastqc_%A_%a.out
#SBATCH --error=fastqc_%A_%a.err

SAMPLES=("Sample1" "Sample2" "Sample3" "Sample4" "Sample5" "Sample6")
INDEX=$(($SLURM_ARRAY_TASK_ID - 1))
SAMPLE=${SAMPLES[$INDEX]}

SUBMIT_DIR=$(pwd)
INPUT_DIR="${SUBMIT_DIR}/reads"
OUTPUT_DIR="${SUBMIT_DIR}/fastqc_results"

# Set up scratch space on the compute node
SCRATCH="/scratch/${SLURM_JOB_ID}_${SLURM_ARRAY_TASK_ID}"
mkdir -p $SCRATCH

# Cleanup scratch on exit (success or failure)
cleanup() { echo "Cleaning scratch..."; rm -rf "$SCRATCH"; }
trap cleanup EXIT

# Copy input data to scratch
cp ${INPUT_DIR}/${SAMPLE}_R1.fastq.gz $SCRATCH/
cp ${INPUT_DIR}/${SAMPLE}_R2.fastq.gz $SCRATCH/

# Run analysis on scratch
cd $SCRATCH
module load FastQC
fastqc -t 16 -o $SCRATCH/ ${SAMPLE}_R1.fastq.gz ${SAMPLE}_R2.fastq.gz

# Move results back to shared storage
mkdir -p $OUTPUT_DIR
mv ${SAMPLE}*_fastqc.{html,zip} $OUTPUT_DIR/

echo "Finished $SAMPLE at $(date)"

10. Using AI to Generate Script Drafts

Large language models (ChatGPT, Google Gemini, Claude) can generate solid SLURM script drafts. Use prompts like:

“Write a SLURM script for the basic partition requesting 64 GB RAM and 16 CPUs to run DIAMOND blastp on a protein FASTA file.”

Always review the generated script and verify that:

• The partition name matches (basic or gpu)
• Memory and CPU requests are realistic
• The module names match what is installed on McCartney (module avail)

11. Best Practices

12. Useful Links

13. Getting Help

For any of the following, contact the SysAdmins directly:

• Software installation or database setup
• Password reset or new account creation
• Node failures or unexpected job terminations
• Access from a banned IP
• Any doubt not covered here

Gabriel Ballesteros — gaballesteros@gmail.com
Valentín Berríos — v.berriosfarias@gmail.com

You can also query each Slurm command’s built-in manual page directly on the cluster:

man sbatch
man squeue
man sinfo
